Vehicle and workshop
- Vehicle make and model
- Toyota Harrier
- Service category
- ADAS Calibration
- Workshop
- Sri Kuching Car Audio & Air Cond Service Centre, Taman Mastiara, Kuala Lumpur
Customer concern or upgrade request
Multiple driver-assistance warnings were present on the dashboard.
Inspection and diagnosis

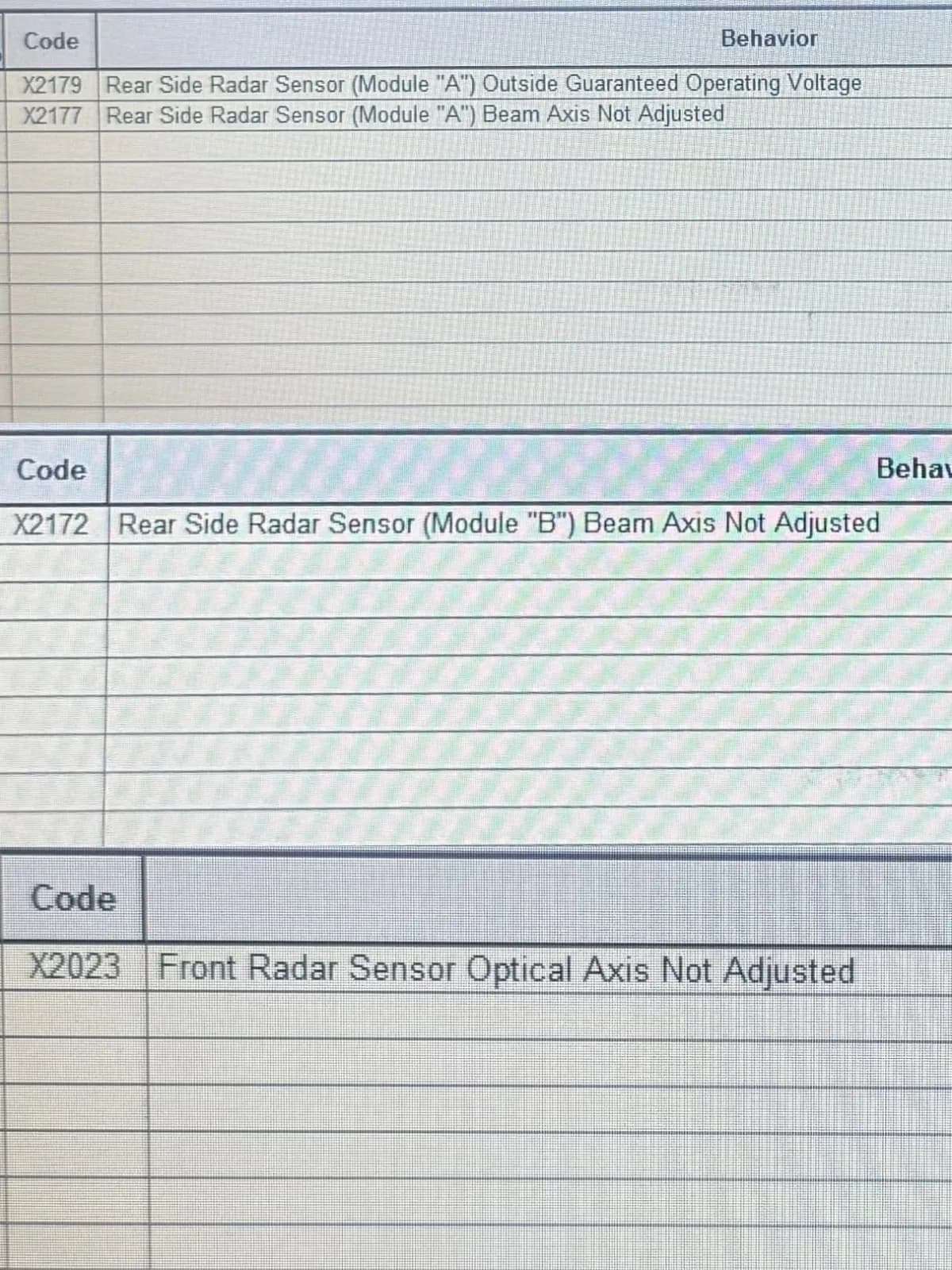

Fault codes indicated front radar optical axis misalignment and rear side radar / Blind Spot sensor beam axis not adjusted.
Repair and upgrade work
Multiple driver-assistance warnings were present on the dashboard. Fault codes confirmed front radar sensor optical axis misalignment and rear side radar (Blind Spot) sensor beam axis not adjusted. We performed precision calibration on both the front radar and rear Blind Spot Monitoring system to restore factory alignment.

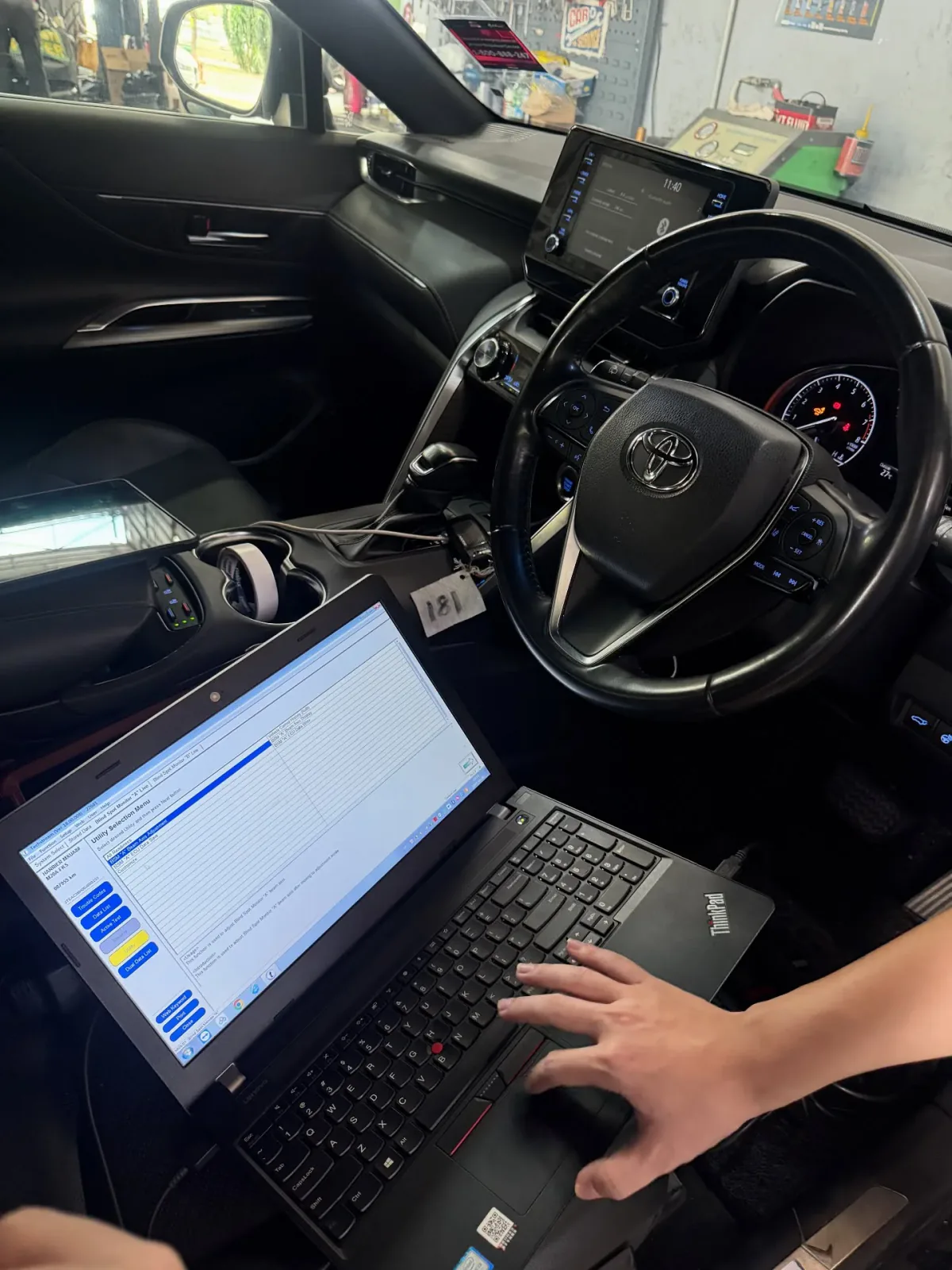

- Full ADAS fault code retrieval and system analysis

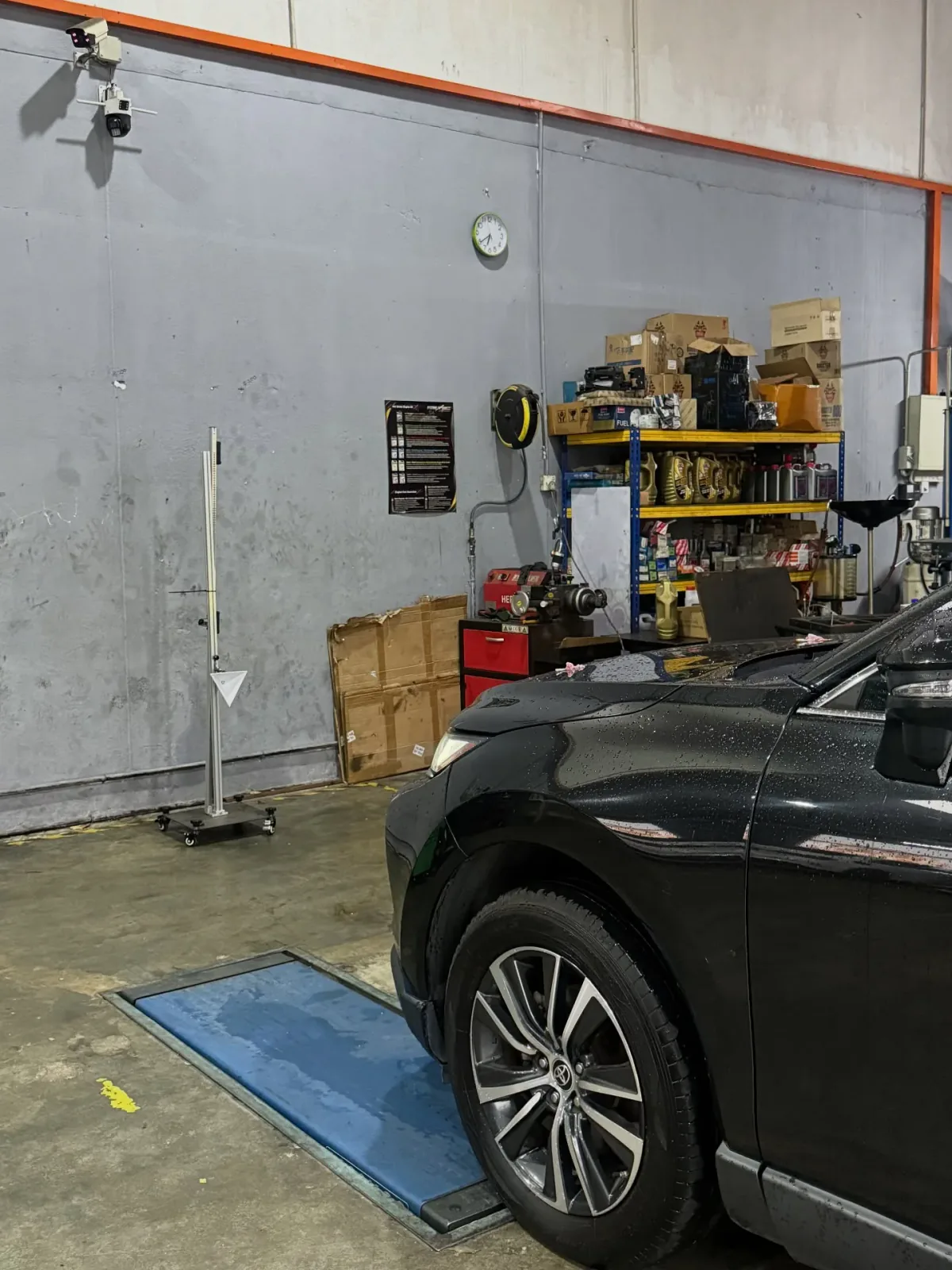

- Front radar sensor optical axis calibration
- Rear side radar (BSM) beam axis adjustment
- System recalibration and post-repair verification
Testing and verification
Post-calibration diagnostic verification confirmed sensor alignment and system operation, with related codes and dashboard warnings cleared.
Documented outcome
Front radar and rear BSM sensors recalibrated to specification. All related fault codes cleared, driver-assistance warnings extinguished, and system operation confirmed via diagnostic verification.
Other workshop support
ADAS calibration also available: recognition camera, PCS, RSA, ICS, RCTA, LTA, and headlight system
Explore ADAS calibration servicesWorkshop photo gallery

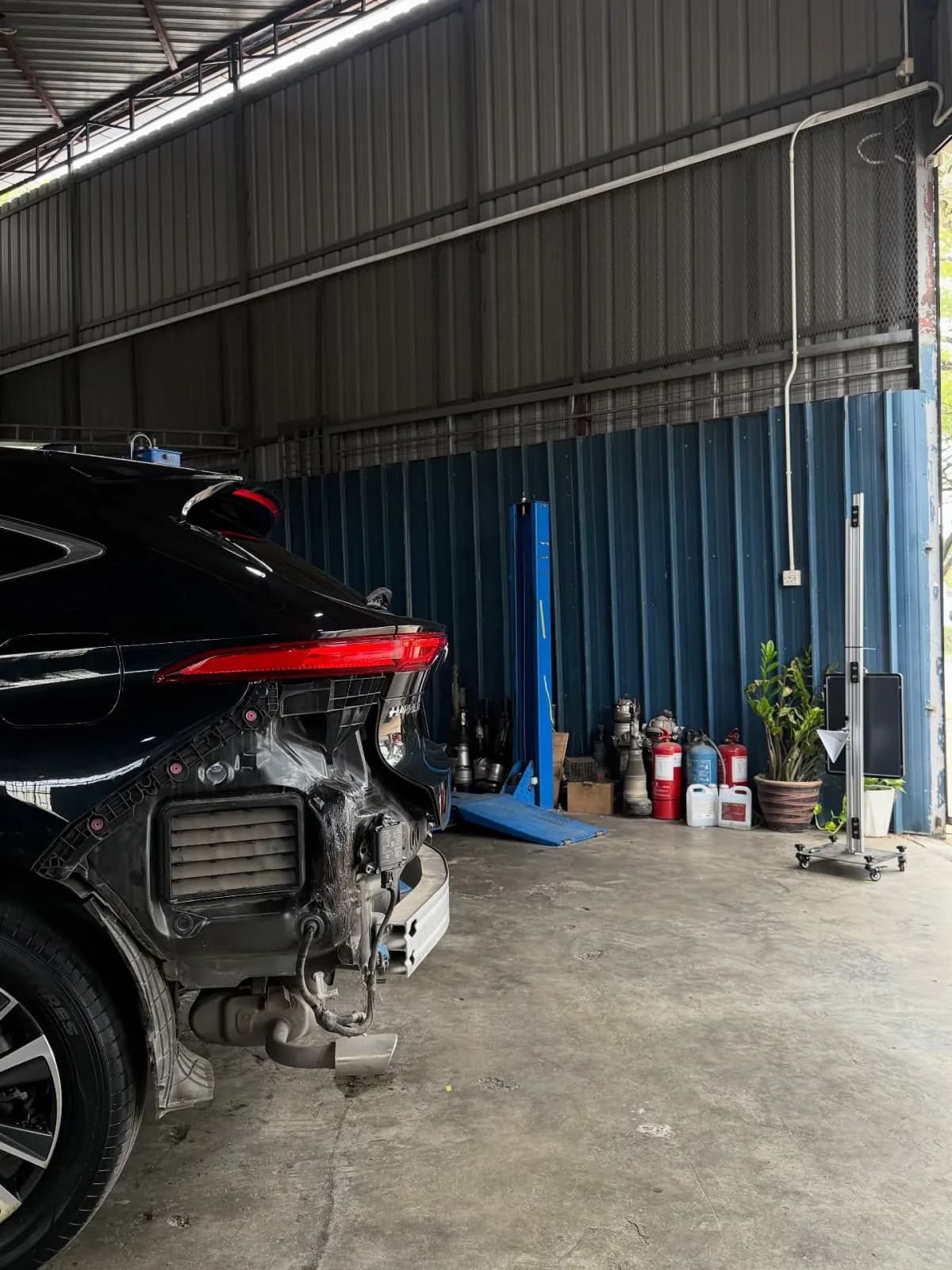

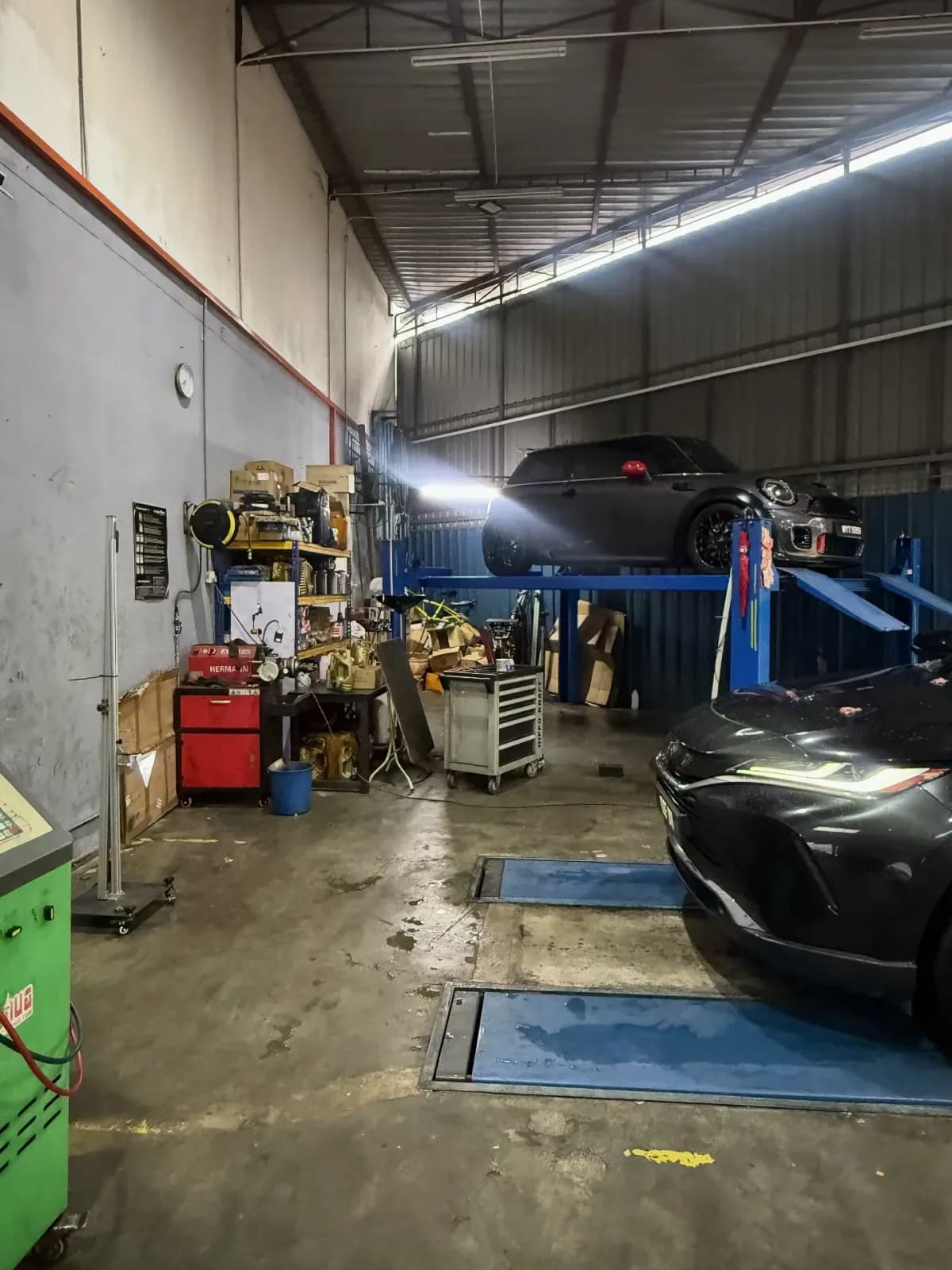

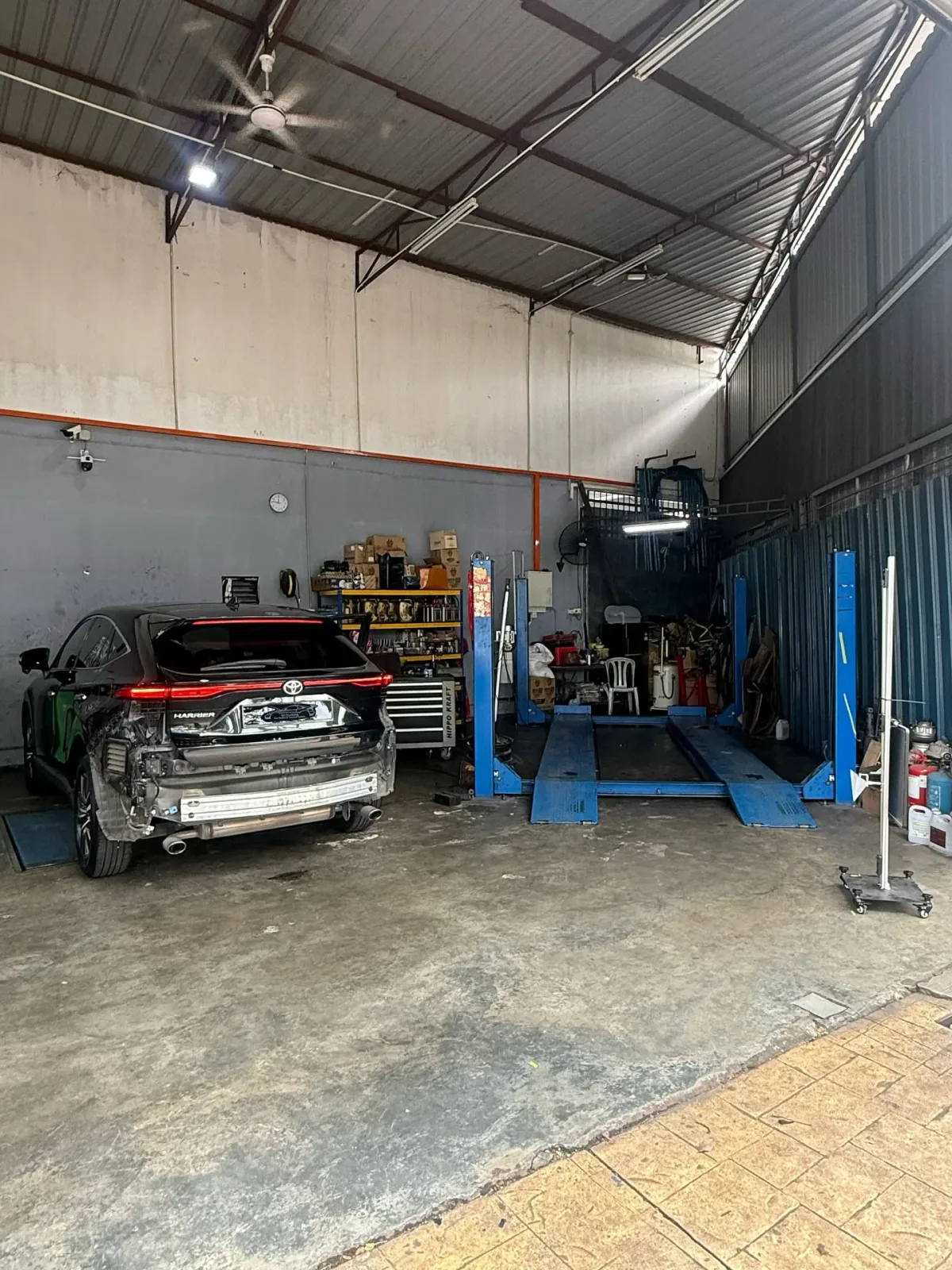

6 workshop photos documenting this Toyota Harrier case. Select a photo to enlarge it.
Questions about this Toyota Harrier case
Which radar systems needed calibration on this Toyota Harrier?
The front radar needed optical axis calibration, and the rear side radar / Blind Spot Monitor system needed beam-axis adjustment.
What was the result of the Harrier radar and BSM calibration?
Both systems were recalibrated to specification. The workshop confirmed system operation through diagnostic verification and cleared the related codes and warnings.
